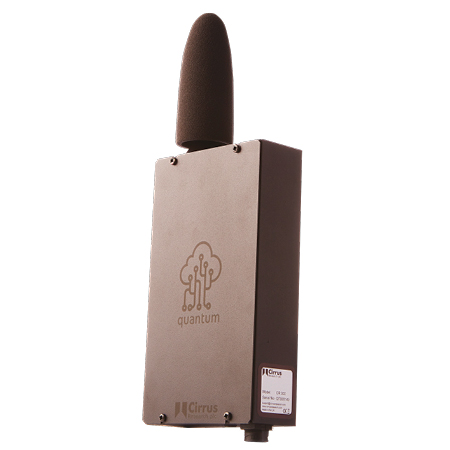

Indoor Quantum
Quantum Indoor is a powerful noise monitoring solution with built-in cloud connectivity, perfectly suited for unattended indoor noise monitoring across a range of applications. Quantum Indoor can be used for: long-term occupational noise monitoring; identifying the source and type of noise that is occurring, and highlighting where noise control measures are required.
Problems Solved
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.
Information
| Applicable Standards |
IEC 61672-1: 2013 (Class 1 - CR:901)
IEC 61672-1: 2013 (Class 2 - CR:900) IEC 61260: 1995 (1:1 and 1:3 octave band filters) ANSI S1.4 - 1983 (R2006) ANSI S1.43 - 1997 (R2007) ANSI S1.11 - 2004 (1:1 and 1:3 octave band filters) |
| EMC |
EN 61000-6-3: 2007+A1: 2011
EN 61000-6-1: 2007 |
| Microphone | MK:224 pre-polarised |
| Measurement Range | 20 to 140dB RMS in a single range |
| Noise Floor |
<19dB(A) Class 1
<22dB(A) Class 2 |
| Frequency Weightings |
RMS & Peak: A, C & Z measured in
parallel
1:1 octave bands: 31.5Hz to 16kHz 1:3 octave bands: 6.3Hz to 20kHz |
| Time Weightings |
Simulatenous Fast, Slow and Impulse
Time history data rates 10ms, 100ms, ½ sec, 1 sec |
| Live Data Refresh Rate | 1 sec |
| Live Data View |
Noise at work (LAF, LAeq & LCPeak)
Environmental (LAF & LAeq) Custom (LAeq, LCeq, LZeq, LAFMax, LASMax, LCPeak & LZPeak |
| Measurement Control | User-definable scheduled measurements & user-selectable 5min, 15min, 30min, 1hr repeat timers |
| Stored Values |
LAeq, LCeq, LZeq, C-A, LAE, LEX8,
LAFMax, LASMax, LCPeak, LAF1, LAF5, LAF10, LAF50, LAF95, LAF99, LAeqT1 & LAeqT2 1:1 octave bands: 31.5Hz to 16kHz 1:3 octave bands: 6.3Hz to 20kHz Time history of 1:1 & 1:3 octave bands Audio |
| Audio Quality |
Standard (16bit/16kHz)
High (24bit/48kHz) |
| Dimensions | 127 X 360 X 66mm |
| Weight | 1.2kg |
| Integrators | User-selectable dual integrators: OSHA HC, OSHA PEL, MSHA HC, MSHA PEL, ACGIH, Custom A & Custom B |
| Moving Average | User-selectable: 5 min, 15min, 30min, 60min |
| Mounting |
DIN rail (standard)
Wall mount Pole mount Tripod mount |
| Memory | 4GB standard - 30 days of measurement data or 24 hours of standard audio |
| Power | PoE IEEE 802.3af-2003 37V-57V |
| Power Consumption | Approx. 5w |
| Operating Conditions |
Temperature
-10°C to +50°C (operating) -20°C to +60°C (storage) Humidity Up to 95% RH non-condensing |
| Network Connection |
Ethernet
Dual-band WiFi (2.4GHz & 5GHz) Bluetooth |
